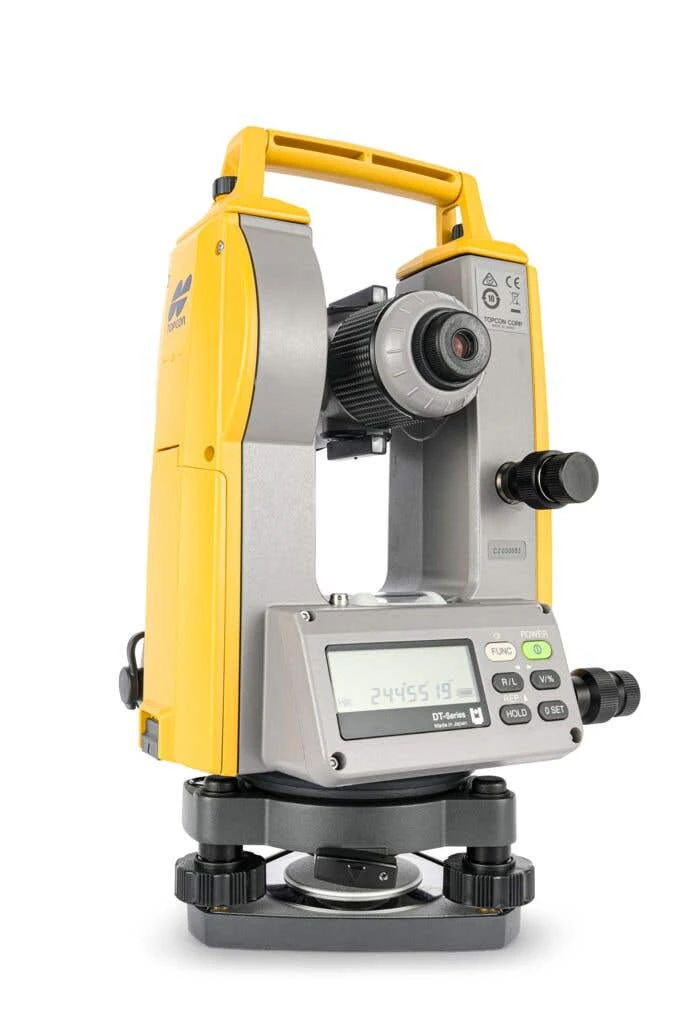

Topcon Theodolites Digital DT-309

The Topcon DT-309 you’ll be up and working fast, thanks to its simple interface and large, easy-to-see backlit LCD. There’s an optical plummet that makes set up over a control point easy, and a tilt sensor that provides ±3 minute angle correction. The DT-300 Series features a magnification of 30x, a super-short 0.9m minimum focus distance for those tight areas, and angle accuracies of 9 arc seconds.

The DT-309 Digital Theodolite features a lightweight, compact alignment and angular measurement device which boasts up to 30 workdays of power through an Alkaline or Li-ion , the highest water and dust protection in its category (IP66) paired with expert convenience.

Specifications
Telescope
Aperture 45mm
Magnification 30x
Field of view 1°30′
Minimum Focus 1.0m
Stadia Ratio 100

Angle Measurement
Method Rotating Absolute Encoder
Minimum Reading
10″ (0.002 gon/0.05 mil)/20″ (0.005 gon/0.1 mil) Selectable

Optical plummet
Magnification 3x
Minimum focus 0.5m

Sensitivity of levels
Circular level 10’/2mm
Plate level 30″/2 mm

Power supply
4x AA Dry Cells or BDC71 (Optional)

Kit Components
DT-309 Digtal Theodolite
Plumb bob
Tool Kit
Waterproof Cover
Lens Cloth
Case
Australian Calibration Certificate</p/>

• Features a high-resolution digital display that provides clear and easy-to-read angle measurements, ensuring efficient and accurate data collection
• Equipped with a dual-axis compensator, these theodolites automatically correct for both horizontal and vertical misalignments
• Seamlessly connect the theodolites to external devices
• The DT-309 boasts an extended life, minimizing interruptions during fieldwork
