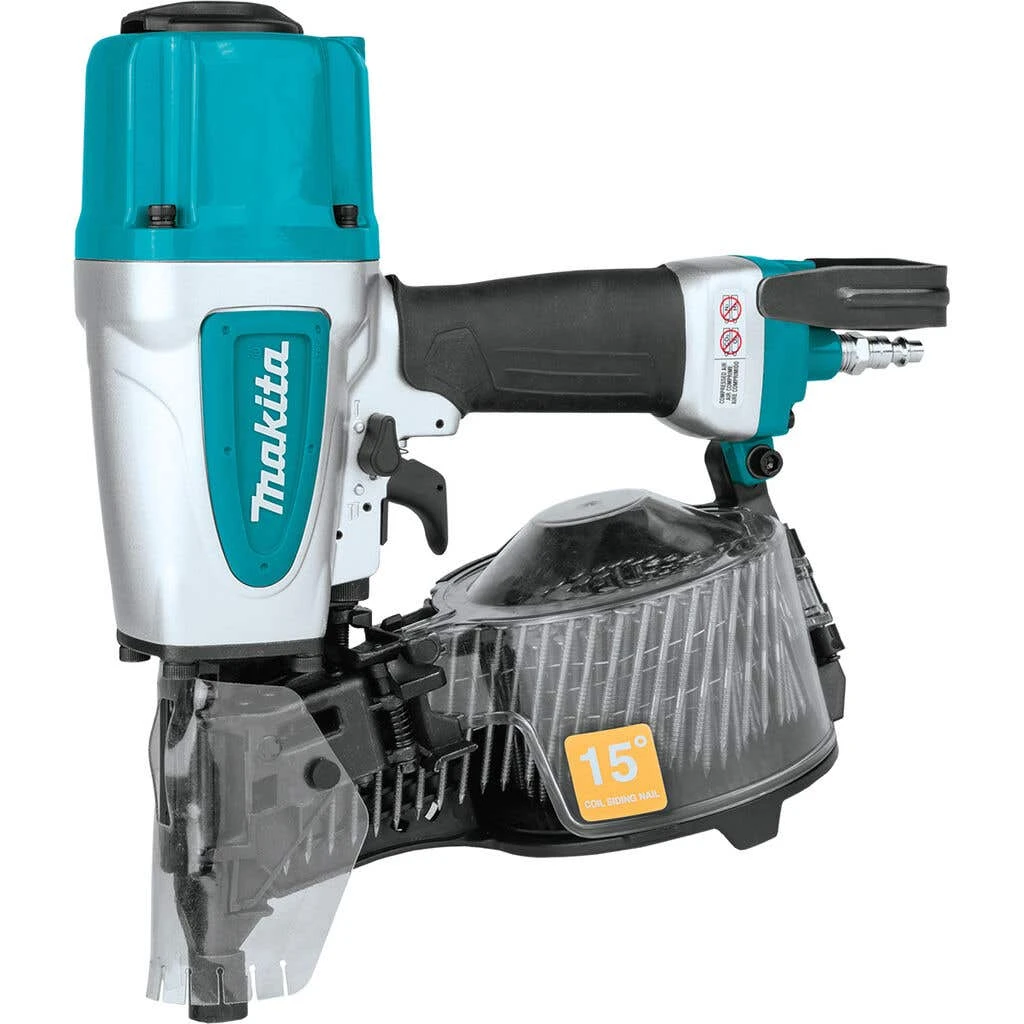

Makita Construction Air Nailer Coiler 32-65mm

The AN613 is suitable for various tasks including framing, fencing, interior & exterior nailing. Featuring two modes; single sequential actuation mode (single fire) as well as contact actuation mode (bump fire). This model has improved the rapid fire function in bump fire mode compared to the previous model. AN613 is also equipped with an air blower to clean the working area by the push of a button. Plus the easy-to-grip handle, low noise and low recoil ensures extended comfortable use.

Actuation Mode Selector: select operation mode: single sequential actuation mode (single fire) or contact actuation mode (bump fire).

Nail depth adjustment: to adjust the depth of nailing, turn the adjuster. The guide on the tool shows which direction for deep or shallow depth. If nails are still not driven deep enough after adjustment, increase the air pressure. If nails are too deep after adjustment, decrease the air pressure.

Air duster: helps clean dust and debris off material. Press the button on the grip end to engage.

Hook: convenient for hanging the tool temporarily. To change the hook position, remove the hex socket bolt and switch hook direction.

Easy to-grip handle: Anti-slip ribs added to the grip rubber provides more control.

Nose adapter: use the adapter to prevent the surface of the workpiece from being scratched or damaged.

Power: 70-120 PSI operating air pressure.

Precision: Easy to use depth adjustment.

Convenience: Air duster to blow away dust and debris.

Control: 2 mode selection switch: single fire or bump fire.

• Fastener range: 32 – 65mm (Wire-collated or plastic-collated)
• Operating air pressure: 70 – 120PSI
• Magazine capacity: 200 – 300pcs
• Fastener type: 15°, 2.3 – 2.5mm dia.

Product Identifiers

Product Details

Assembled Dimensions (mm)

Product Dimensions

Warranty & Care
