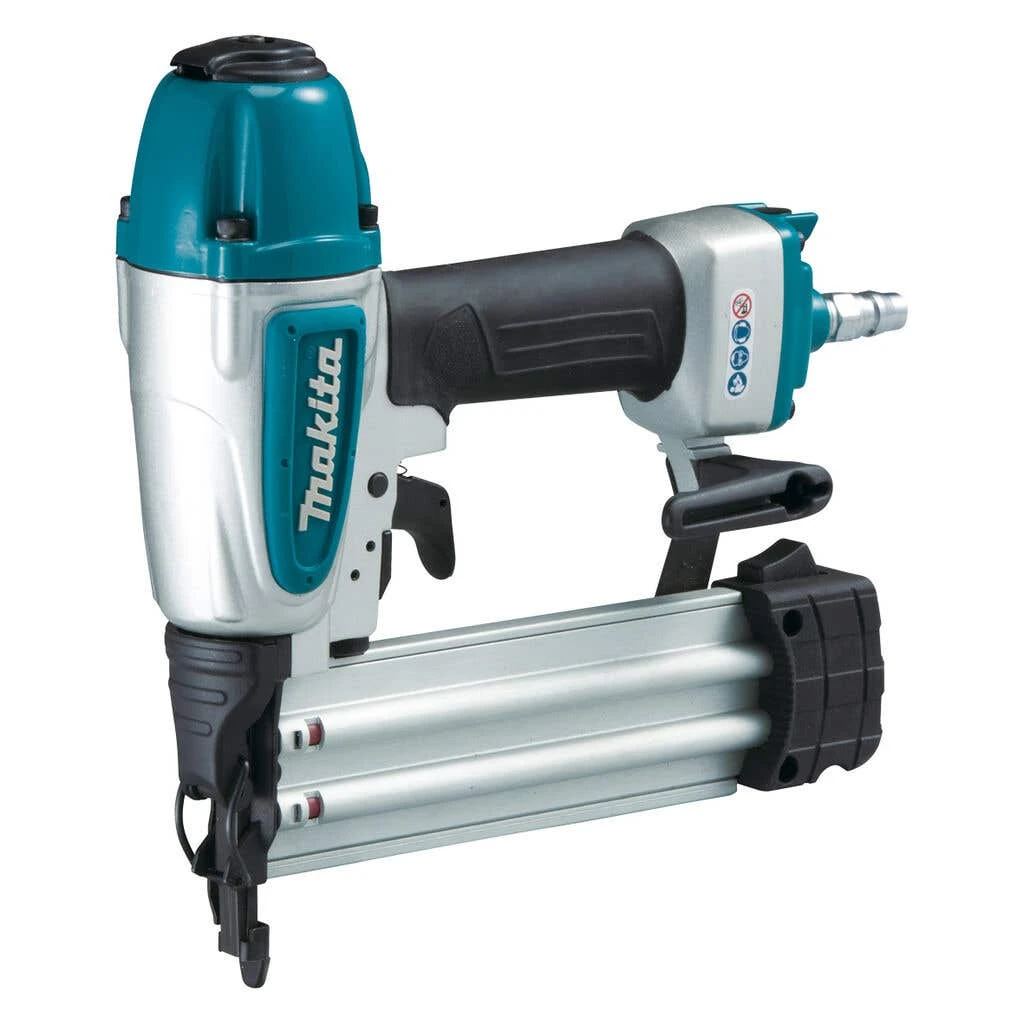

Makita C1 Series 18ga Air Nailer Bradder 15-50mm

The AF506 has been designed to provide solutions for carpenters, builders, cabinet makers and many other trades. The AF506 features a re-designed slim nose which allows easier access to the desired fastening point and more precise firing of brad nails. It is also equipped with an air blower, expelling air via the exhaust port to clean the working area by the push of a button. The AF506 is also equipped with improved safety features, with a re-designed guard for increased safety and minimization of risk on the jobsite.

• Depth adjustment dial – depth of nailing can be adjusted by turning the adjuster. Scrolling the adjuster up will sink the nail further into the material and scrolling down will make the nail sit proud
• Tool-less jammed nail clearing – once the hose has been disconnected, open the slide door then pull the latch to open door and remove the nails, no need for tools
• Soft grip – Soft rubber grip for comfortable operation
• Air duster – air supplied to the tool can also be used as an air duster to clean the working area of dust and debris. Simply press the base of the tool to expel air via the exhaust port
• Nails remaining window – dual windows enable fast identification of remaining nail capacity, increasing efficiency
• Slim nose tip – allows easy access to a desired fastening point and more precise and accurate firing of brad nails
• Easy-to-see slim nose tip
• Air blower cleans material of dust and chips from workpiece
• Designed to suit the needs of second fix carpenters, builders, wood-working and cabinet makers
• The AF506 replaces the AF505N

Specifications:

• Fastener Range: 15 – 50mm
• Fastener Type: 18Ga
• Magazine Capacity: 100pcs
• Operating Air Pressure: 70 – 120psi

Includes:

• 1 x Oil
• 1 x Nose Cap
• 1 x Safety Goggles
