Makita 18V 4 X 5.0Ah Brushless Combo Kit – 15 Piece DLX1509TX1

The 18V Brushless Hammer Driver-Drill provides 141Nm of maximum fastening torque and a no-load speed of 2,100rpm combining rapid drilling speeds with high levels of torque. This model has been redesigned with a newly designed motor and gear ratio achieving not only more power but also increasing the performance in continuous heavy-duty applications.

Not only has the performance of this model been increased but it is also considerably shorter. At 178mm in length, this model is 27mm shorter than the previous model. Making it the most compact drill in its class and extremely comfortable to use in all applications.

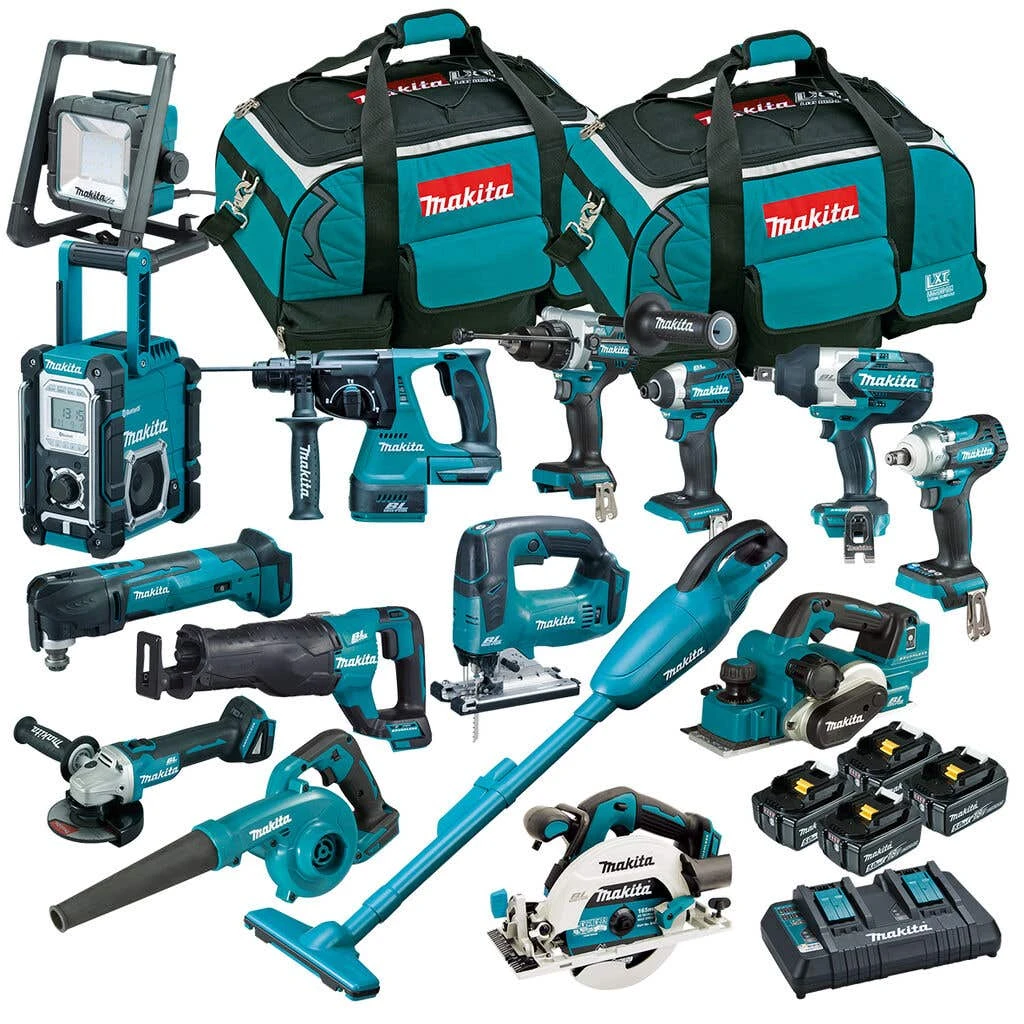

Kit Includes
DHP486Z – 18V Brushless Driver Drill
DTD154Z – 18V Brushless Impact Driver
DGA504Z – 18V Brushless 125mm (5”) Angle Grinder
DHS680Z – 18V Brushless 165mm
DHR242Z – 18V Brushless 24mm Rotary Hammer
DJR187Z – 18V Brushless Recipro Saw
DTW300Z – 18V Brushless 1/2” Impact Wrench
DTW1001Z – 18V Brushless ¾” Impact Wrench
DJV182Z – 18V Brushless Jigsaw
DKP181Z – 18V Brushless 82mm Planer
DTM51Z* – 18V Multi-tool
DUB185Z* – 18V Blower
DCL180Z* – 18V Stick Vacuum
DMR108N – Bluetooth
DML805 – 18V LED Work Light
4x BL1850B – 5.0Ah Batteries
DC18RD – Dual Port Rapid Charger
2x 199936-9 –
*Brushed tool

18V Brushless Heavy Duty Hammer Driver Drill DHP486Z
Massive drilling capacity with 152mm hole saw & 50mm auger bit capacity
Compact overall length of only 178mm for use in narrow workspaces
High powered Brushless Motor produces 141Nm peak torque
High-durability aluminium gear housing
Mechanical 2-speed gearing with all metal gear construction

Impact Rate:
    Hi: 0 – 31,500ipm
    Lo: 0 – 8,250ipm
Max. drilling capacities in masonry: 16mm
Max. drilling capacities in steel: 13mm
Max. drilling capacities in wood:
    Auger bit: 50mm
    Self-feeding bit: 76mm
    Hole saw: 152mm
Max. lock torque: 125Nm
Max. tightening torque:
    Hard: 130Nm
    Soft: 65Nm
No Load Speed:
    Hi: 0 – 2,100rpm
    Lo: 0 – 550rpm
Skin weight: 2.1kg
Voltage: 18V
Weight (with battery): 2.1kg

18V Mobile Brushless 4-Mode Impact Driver DTD154Z
4 Modes of impact driving optimised for the task at hand
T-Mode intelligently adjusts rpm when driving the screws
Staggering 175Nm of max fastening torque
XPT technology that protects against dust & moisture
One-touch bit installation

Drive Shank: 6.35mm(1/4″)Hex
Impact Rate: Hard: 0 – 3,800ipm / Med: 0 – 2,600ipm / Soft: 0 – 1,100ipm
Max. capacities high tensile bolt: M5 -M14
Max. capacities standard bolt: M5 -M16
Max. tightening torque: 175Nm
No Load Speed: Hard: 0 – 3,600rpm / Med: 0 – 2,100rpm / Soft: 0 – 1,100rpm
Overall Length: 117mm
Skin weight: 0.9kg
Voltage: 18V
Weight (with battery): 1.5kg

18V Mobile Brushless 125mm Slide Switch Angle Grinder DGA504Z
Kickback detection, anti-restart and soft start
Automatic Torque Drive increases torque to power through any cut
Extreme performance with 8,500rpm no load speed
XPT technology that protects against dust & moisture
Electronic current limiter

No Load Speed: 8,500rpm
Overall Length: 362mm
Skin weight: 2.0kg
Voltage: 18V
Weight (with battery): 2.6kg
Wheel diameter: 125mm (5″)

18V Mobile Brushless 165mm DHS680Z
Max cut capacity of 57mm with up to 50° bevel capacity
Automatic Torque Drive increases torque to power through any cut
High-cutting performance with up to 5,000rpm no load speed
The electric brake rapidly slows the blade for added safety
The blower function blows dust away from the cut line for greater visibility

Bevel Capacity: 0°- 50°
Blade Diameter: 165mm (6-1/2″)
Bore Diameter: 20mm
Max. cutting capacities at 0°: 57mm
Max. cutting capacities at 45°: 41mm
Max. cutting capacities at 50°: 37mm
No Load Speed: 5,000rpm
Overall Length: 350mm
Skin weight: 2.7kg
Voltage: 18V
Weight (with battery): 3.3kg

18V Mobile Brushless 24mm SDS Plus Rotary Hammer DHR242Z
3 Mode operation: hammer only, rotation only, rotation & hammer
Unique rubber joint suppresses vibration to battery
2.0j of impact energy
* Rating in accordance with EPTA 05/2009

Impact energy: 2.0j
Impact Rate: 0 – 4,700ipm
Max. drilling capacities in masonry: 24mm
Max. drilling capacities in steel: 13mm
Max. drilling capacities in wood: 27mm
No Load Speed: 0 – 950rpm
Overall Length: 328mm
Skin weight: 2.7kg
Vibration per min: 13.5m/s²
Voltage: 18V
Weight (with battery): 3.3kg

18V Mobile Brushless Recipro Saw DJR187Z
32mm stroke with a cutting capacity of 255mm in wood
A newly designed vertical crank mechanism reduces vibration
High-performance 3,000spm no load speed
Rafter hanging hook for added convenience
XPT technology that protects against dust & moisture

Length of Stroke: 32mm
Max. cutting capacities in pipe: ø 130mm
Max. cutting capacities in wood: 255mm
Overall Length: 439mm
Skin weight: 3.1kg
Strokes per minute: Hi: 0 – 3,000spm / Lo: 0 – 2,300spm
Voltage: 18V
Weight (with battery): 3.7kg

18V Brushless 1/2″ Impact Wrench DTW300Z
Variable speed trigger & Quick Trigger mode which engages immediate full speed
Forward & Reverse Automatic Stop, with 6 modes for customised applications
High power in a compact design with 330Nm maximum fastening torque
4 stages of impact force enable the user to set the appropriate torque for each application
eXtreme Protection Technology (XPT) provides enhanced protection against dust and moisture

Drive Shank: 12.7mm (1/2”) Square
Impact Rate: Max: 0 – 4,000ipm, High: 0 – 3,400ipm, Med: 0 – 2,600ipm, Soft: 1,800ipm
Max. capacities high tensile bolt: M10 – M16
Max. capacities standard bolt: M10 – M20
Max. fastening torque: Max: 330Nm, Hard: 210Nm, Medium: 160Nm, Soft: 100Nm
No Load Speed: Max: 0 – 3,200rpm, High: 0 – 2,600rpm, Medium: 0 – 1,800rpm, Soft: 0 – 1,000rpm
Nut busting torque: 580Nm
Overall Length: 144mm
Skin weight: 1.2kg
Voltage: 18V
Weight (with battery): 1.8kg

18V Mobile Brushless 3/4″ Impact Wrench DTW1001Z
Unique rubber joint suppresses vibration to battery terminals
3 Stage power selection for optimum rpm and fastening torque
Most powerful in its class with 1,700Nm of nut-busting torque
Twin LED job light with pre-glow and after-glow function
Durable hammer case for maximum reliability

Drive Shank: 19mm 3/4″ Square
Impact Rate: Hard: 0 – 2,200ipm / Med: 0 – 2,000ipm / Soft: 0 – 1,800ipm
Max. capacities high tensile bolt: M10 – M24
Max. capacities standard bolt: M12 – M30
Max. fastening torque: Hard: 1,050Nm / Med: 600Nm / Soft: 300Nm
No Load Speed: Hard: 0 – 1,800rpm / Med: 0 – 1,000rpm / Soft: 0 – 900rpm
Nut busting torque: 1,700Nm
Overall Length: 229mm
Skin weight: 3.1kg
Voltage: 18V
Weight (with battery): 3.7kg

18V Mobile Brushless D-Handle Jigsaw DJV182Z
26mm stroke with a cutting capacity of 135mm in wood
Soft No-Load improves your control & battery life
800 – 3,500spm no load speed
Variable speed control via dial
Tool-less blade change for quick and convenient blade changes

Bevel Capacity: 45° left – 45° right
Length of Stroke: 26mm
Max. cutting capacities in aluminium: 20mm
Max. cutting capacities in steel: 10mm
Max. cutting capacities in wood: 135mm
Overall Length: 266mm
Skin weight: 2.0kg
Strokes per minute: 800-3,500spm
Voltage: 18V
Weight (with battery): 2.6kg

18V Brushless AWS* 82mm Planer DKP181Z
The high powered motor allows a maximum 3mm cutting depth
Auto-start Wireless System (AWS) for on-demand dust extraction*
12,000rpm no load speed with Automatic Torque Drive performance
Left or right side chip ejection
Electric brake & foot on base plate protect the workpiece from damage
*AWS receiver sold separately

Max. planing depth: 3mm
No Load Speed: 12,000rpm
Overall Length: 366mm
Planning width: 82mm
Shipping / Rebate: 25mm
Skin weight: 3.0kg
Voltage: 18V
Weight (with battery): 3.6kg

18V Mobile Multi-tool DTM51Z
Tool-less accessory changes with lever locking system
Compatible with a wide range of accessories
6,000 – 20,000opm no load speed for versatile performance
12 angle settings of accessories at every 30° from 0° to 360°
Anti-restart function

Oscillation Angle, Left/Right: 1.6° (3.2° total)
Oscillation per minute: 6,000 – 20,000opm
Overall Length: 340mm
Skin weight: 1.6kg
Vibration per min: 7.0 m/s²
Voltage: 18V
Weight (with battery): 2.2kg

18V Blower DUB185Z
Increased air volume with 3.2m³/min
3-stage air volume settings & variable speed trigger for maximum control
Wind speeds of up to 352km/h for higher blowing efficiency
Ultra-lightweight at just 2.1kg

Max air volume: 3.2m³/min
Max. Air Velocity: 352km/h
No Load Speed: 0 – 18,000rpm
Overall Length: 517mm
Skin weight: 1.5kg
Voltage: 18V
Weight (with battery): 2.1kg

18V Mobile Stick Vacuum DCL180Z
On/Off trigger switch
650mL dust container with fleece filter
4.2kpa* of sealed suction performance
Lightweight at just 1.7kg
Crevice nozzle for detailed cleaning
*Average over 2 min with full charge 18V battery and standard filter

Max. air volume (m³/min): 1.3m³/min
Max. sealed suction: 4.2kPa
Overall Length: 476mm
Skin weight: 0.6kg
Suction Power – Lo: 30W
Tank Capacity: 650mL
Voltage: 18V
Weight (with battery): 1.2kg

Bluetooth DMR108N
Compact design with IP64 rating ideal for job site conditions
Bluetooth for streaming audio and foldable antenna for radio
2 x large 89mm speakers provide 3.5W x 2 high quality audio
USB Ports for charging mobile devices
A foldable antenna that folds away in line with the body of the radio

* Practical max output when powered by an 18V battery

Continuous Runtime: 6.0Ah – 42hrs
Frequency band: AM: 522 – 1,710kHz / FM: 87.5 – 108MHz
Overall Length: 262mm
Practical max. output: 7.2V:0.5Wx2 / 18V:3.5Wx2
Skin weight: 4.3kg
Voltage: 7.2 – 18V
Weight (with battery): 4.9kg

18V Mobile LED Work light DML805
Powered by either 18V LXT battery or 240V AC power
Up to 17hrs runtime on a 5.0Ah battery
20 Bright white LEDs producing a high output of 750lm
Powered by either 18V LXT battery or 240V AC power
Can be mounted to a tripod or vice available as an optional accessory

Continuous Runtime: 5.0Ah – Hi:8.5hrs / Lo: 17hrs
Illuminance: 1,150lx
Luminous flux: 750lm
Overall Length: 214mm
Skin weight: 2.0kg
Voltage: 18V / AC
Weight (with battery): 2.6kg

18V Li-Ion Battery BL1850B
The fuel gauge indicator displays the charge remaining on the battery in four stages
Built-in memory chip communicates the usage history with the charger
Built-in shock absorbers protect the cells from job site conditions
High energy cells pack more power per cell to reduce the number of cells and overall weight
Large release button for easy removal from the tool
Built-in air vents and wall cools the battery cells evenly whilst blocking damaging debris
16 contact terminals provide consistent power and firm hold in any environment

Dual Port Rapid Charger DC18RD
Fast charging – charges 2 x 3.0Ah Lithium-Ion batteries at the same time in only 22 minutes
Built-in CPU – gathers information from the battery’s memory chip to determine the optimum charging method
Forced air cooling fan – cools the battery to minimise charging time
LED charging display
Full charge sound alert
USB port provides 1.5A output for charging smartphones, tablets, etc

LXT Tool Carry Bag 199936-9
The wide deep main pocket provides quick tool location & easy access
Adjustable heavy-duty shoulder belt makes lifting more comfortable
Metal hooks at the ends to unfasten the belt when not needed
Handles made of polypropylene tape & foam – Extra comfort
L600 x W300 x H300mm
Weight – 1.9kg

• 3 Drilling Modes – screw-driving mode (rotation with clutch) for achieving an even consistent finish when fastening screws. Drilling mode (rotation only) achieving 141Nm max. torque. Hammer Drilling mode (rotation with hammering) on for drilling in masonry up to a maximum 16mm hole diameter.
• LED Job light – high brightness twin LED job light with pre-glow and afterglow functions. Illuminating the working area for greater visibility during the application
• High Power Output – This model has been redesigned with a newly designed motor and gear ratio achieving not only more power but also increasing the performance in continuous heavy-duty applications.
• 2 Speed Mechanical Gearing – high-speed mode produces 2,100rpm for rapid drilling speed while low-speed produces high levels of torque to suit high load operation.
• All-metal gear construction – allows for smooth transfer of power in high-load applications. The highly durable materials ensure this tool has unmatched durability and will continue to perform in years to come.
• XPT – Extreme Protection Technology protects the tool against dust & moisture even in the harshest job site conditions, increasing durability

Product Identifiers

Product Details

Product Dimensions

Battery

Warranty & Care
