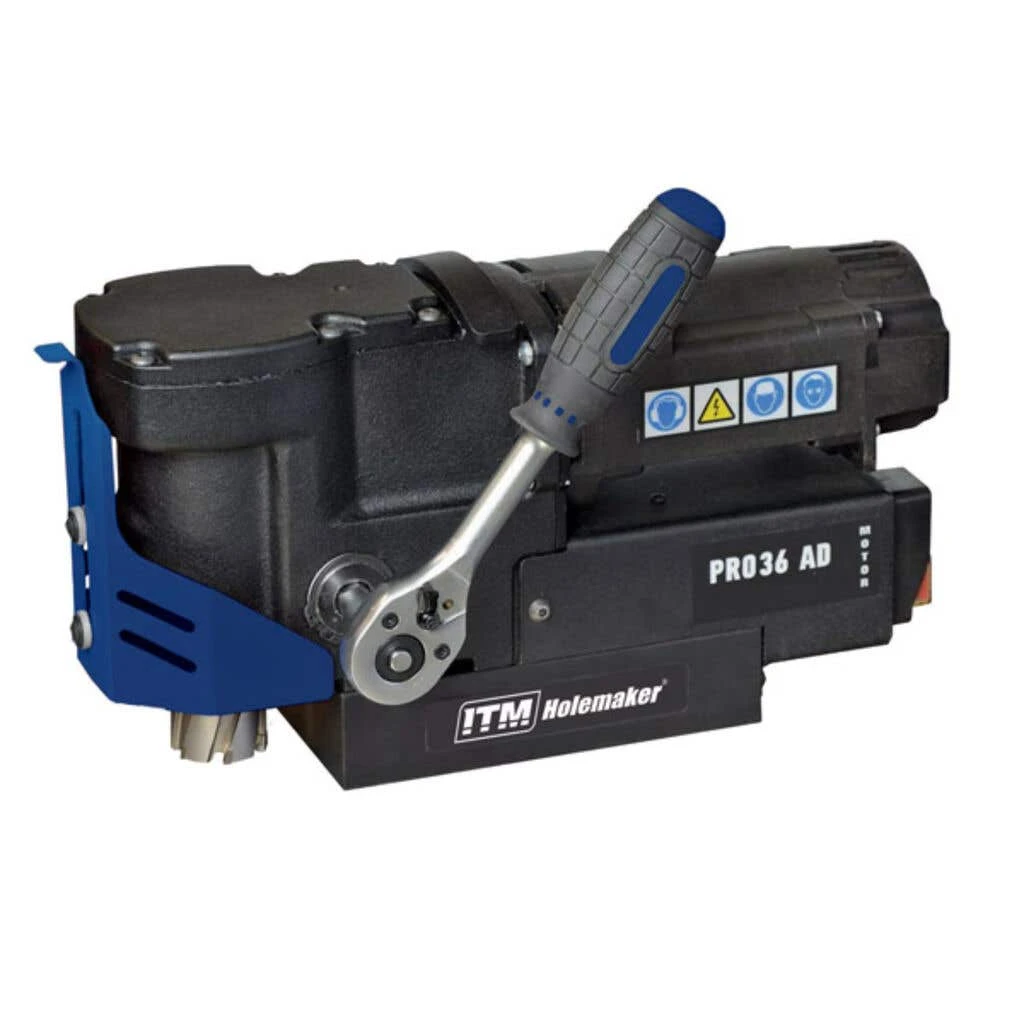

ITM Holemaker 240V Magnetic Base Angle Drill PRO36AD

The PRO 36 AD is an ultra-low profile mag drill, that fits in the tightest of spots. Perfect solution for any applications in confined spaces, where typical mag drills are too large. A powerful motor and strong electromagnetic base enable the drilling of holes up to 36mm in diameter to a depth of up to 30mm (1-3/16″).

PRO-36 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm (3/4″) Weldon shank.

• Ultra-low profile mag drill of 176mm height only
• Extremely low weight of just 9.5kg (21 lbs)
• Milling capacity up to 36mm (1-7/16″)
• Accepts also twist drills with 19,05mm (3/4″) Weldon shank
• Stroke – 39mm
• Integrated swarf guard
• Detachable feed lever (feat. ratchet) can be fixed from either side
• Lifting handle for easy transportation
• Cooling with a bottle

Capacity (Diameter): 36mm
Capacity (Depth): 30mm
Capacity (Twist Drill): 12mm
Motor Power: 920 watt
Input Power: 1000 watt Single Phase 240V
Speed: 370rpm
Weight: 9.5kg
Magnetic Dead Lift: 8900Nm on 25mm Steel Plate
Stroke: 39mm

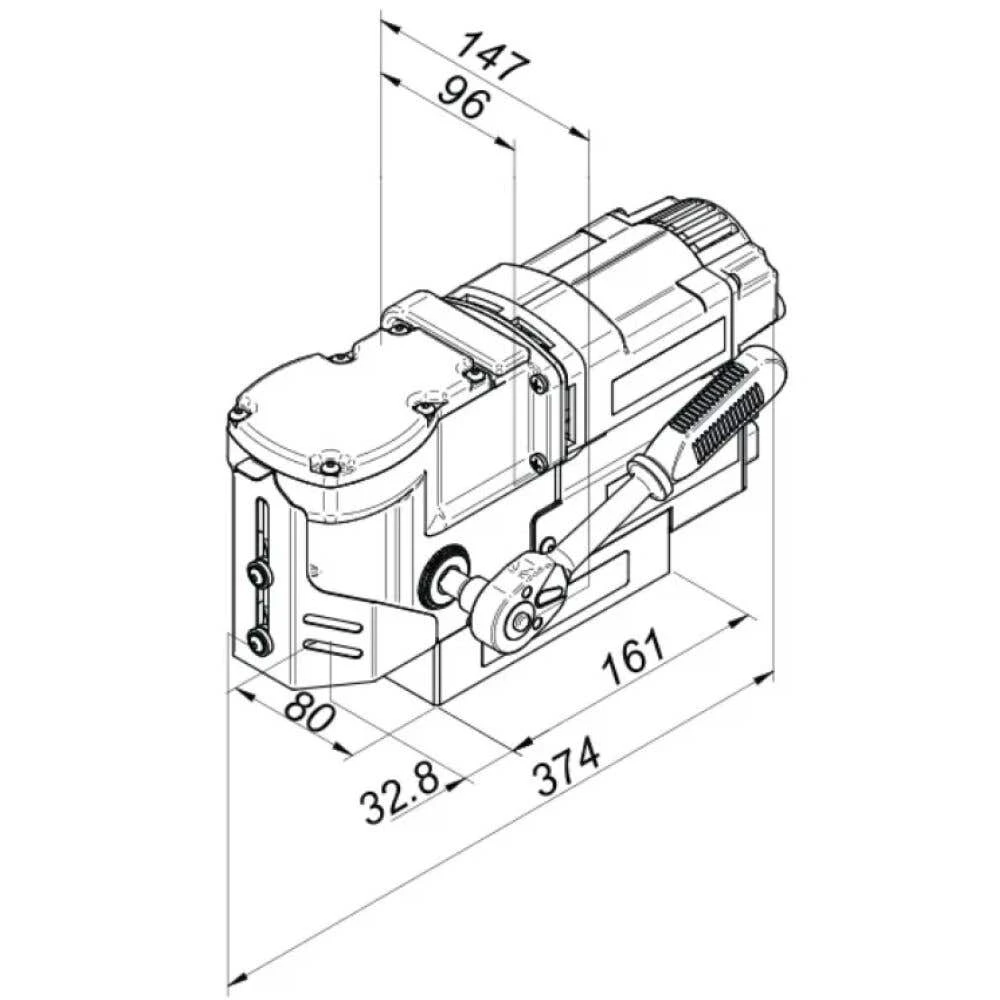

Height: 176mm Constant Working Height
Through Spindle Coolant System
Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
Comes complete in plastic carry case
