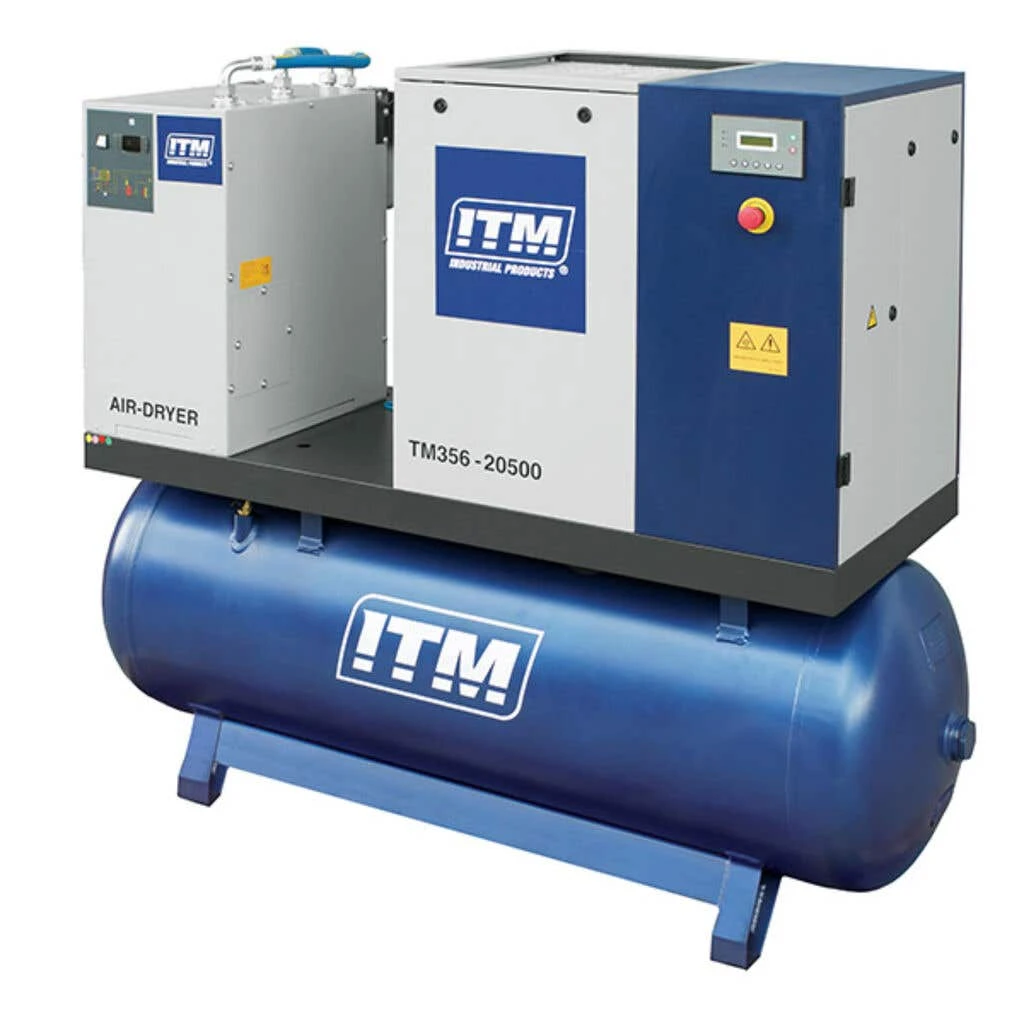

The ITM 20hp Rotary Screw Refrigerated Dryer 3 Phase Air Compressor 500L is a highly efficient and reliable compressed air system designed for industrial applications. This powerful compressor is capable of delivering a continuous supply of compressed air while maintaining optimal moisture levels, thanks to its integrated refrigerated dryer.
Specifications
Pump Type: Screw
Motor: 15kW (20HP) – Three Phase 415V
Tank Capacity: 500 L
Max Pressure: 147 PSI (10 Bar)
Free Air Delivery: 1980 L/min (70 CFM)
Noise: 73 dBA
Compressor Dimensions: 188cm L x 65cm W x 158cm H
Net Weight: 465kg
Shipping Dimensions:205cm L x 90cm W x 175cm H
Gross Weight: 588kg
Effective Working Pressure At Outlet Package: 10.0 bar
Limitations For Operations:
Maximum Effective Working Pressure At Outlet Package: 10.0 bar
Minimum Effective Working Pressure At Outlet Package: 5.5 bar
Maximum Allowable Inlet Temperature: 45°C
Minimum Ambient Temperature: 0°C
Performance Data Compressor:
Free Air Delivery At Reference Conditions: 30.60L/s or 1.8m³/min or 64.8cfm
Mean Sound Pressure Level (2): 73 dBA
- Complete ready-to-go package with screw, tank, dryer and pre/post filters included with a fully sealed cabinet with soundproofing and noise-reducing partitions to minimise noise
- Extra large surface cooler allows the unit to operate at ambient temperatures up to 46°C and premium filtration with ultra-low oil carry over meaning less contamination resulting in cleaner air
- New generation Air End design together with precision manufacturing ensures constant high performance
- Intelligent control system with self-service timing management with all the main components are easily accessible, ensuring fast and simple maintenance
- Warranty – 2 Years on the pump and 1 year on all other components
- Nationwide service and warranty supported by Air Technology Group and ITM service network
- IHG SKU
- 7074529
- National SKU
- 830229
- Product Code
- TM356-20500
- Barcode
- 9328042034717
- Brand
- ITM
- Weight (kg)
- 538
- Depth (mm)
- 205
