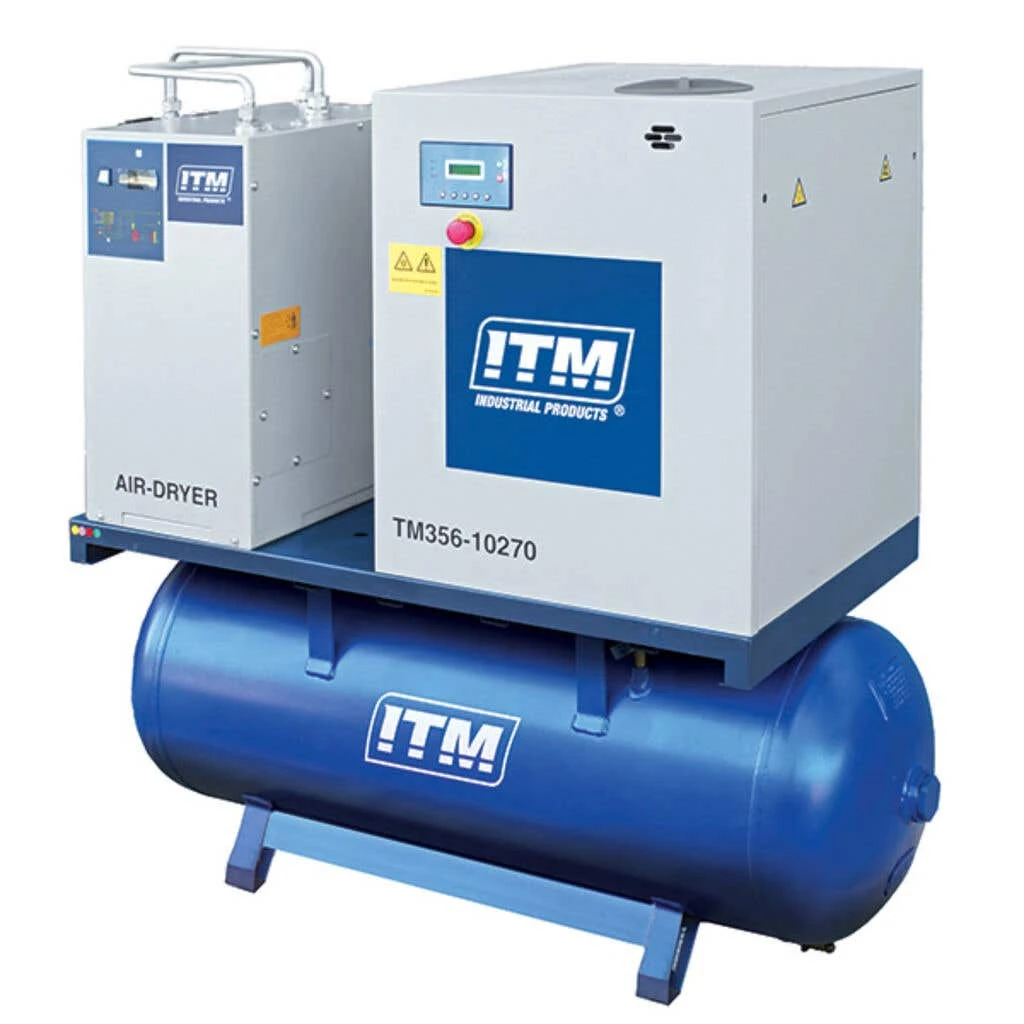

ITM 10hp Rotary Screw 3 Phase Air Compressor Refrigerated Dryer FAD 1080l/min 270L

The ITM 10hp Rotary Screw 3 Phase Air Compressor Refrigerated Dryer FAD 1080l/min 270L is a powerful and efficient air compressor designed to meet the demands of industrial applications. With a 10-horsepower motor and a rotary screw design, this compressor delivers reliable performance and consistent airflow.

• Complete ready-to-go package with screw, tank, dryer and pre/post filters included with a fully sealed cabinet with soundproofing and noise-reducing partitions to minimise noise
• Extra large surface cooler allows the unit to operate at ambient temperatures up to 46° C and premium filtration with ultra-low oil carry over meaning less contamination resulting in cleaner air
• New generation Air End design together with precision manufacturing ensures constant high performance
• Intelligent control system with self-service timing management with all the main components are easily accessible, ensuring fast and simple maintenance
• Warranty – 2 Years on the pump and 1 year on all other components
• Nationwide service and warranty supported by Air Technology Group and ITM service network

Specifications
Pump Type: Screw
Motor: 7.5kW (10HP) – Three Phase 415V
Tank Capacity: 270L
Max Pressure: 147 PSI (10 Bar)
Free Air Delivery: 1080 L/min (38CFM)
Noise: 66 dBA
Compressor Dimensions: 154cm L x 74cm W x 144cm H
Net Weight: 358kg
Shipping Dimensions:174cm L x 99cm W x 197cm H
Gross Weight: 448kg
Effective Working Pressure At Outlet Package: 10.0 bar

Limitations For Operations:
Maximum Effective Working Pressure At Outlet Package: 10.0 bar
Minimum Effective Working Pressure At Outlet Package: 5.0 bar
Maximum Allowable Inlet Temperature: 46°C
Minimum Ambient Temperature: 0°C

Performance Data Compressor:
Free Air Delivery At Reference Conditions: 14.17L/s or 0.85m³/min or 30.0cfm
Mean Sound Pressure Level (2): 68 dBA
