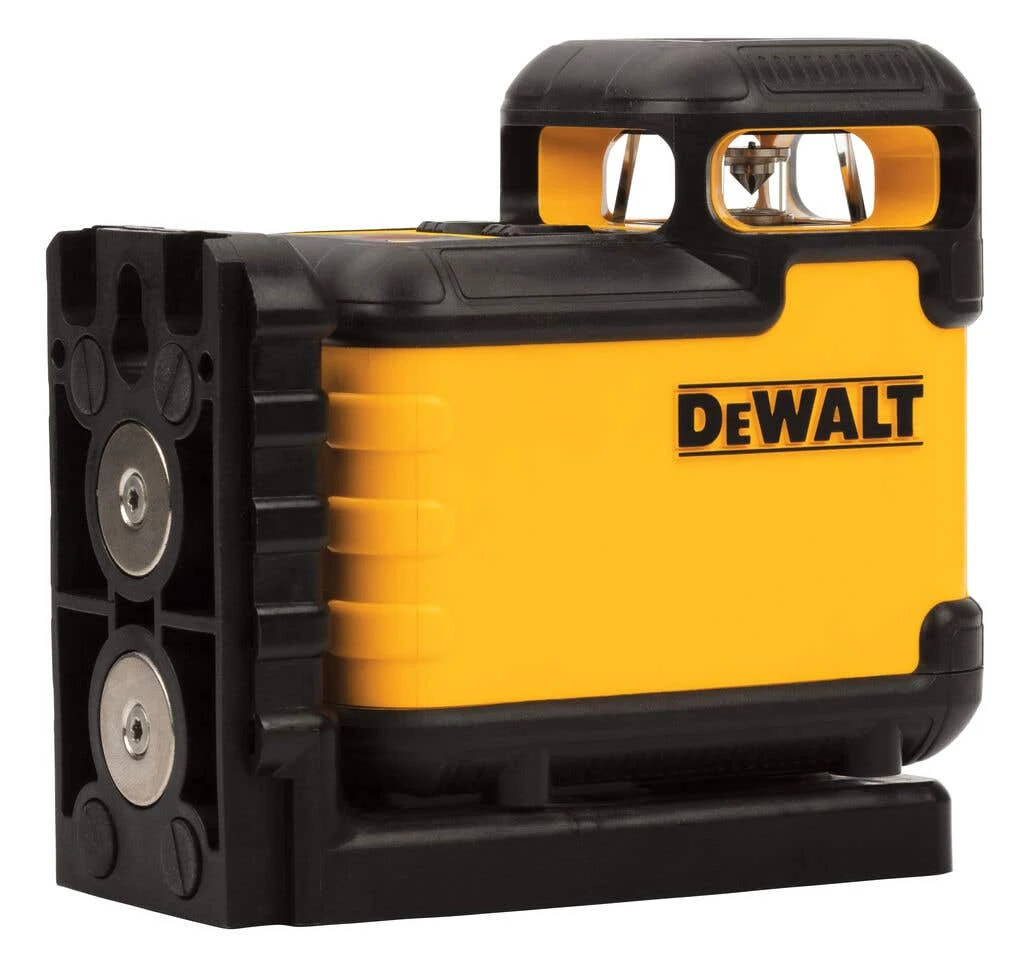

The 360 Degree Red Beam Cross Line Laser, DW03601-XJ, can be used for a wide variety of projects from basic remodelling to woodworking to installing drywall. This laser has a locking pendulum and overmolded housing to protect it from drops. It includes an integrated bracket making it easy to mount on various surfaces. It includes an integrated bracket making it easy to mount on various surfaces.
- 100 degree vertical line + 360 degree horizontal line
- Locking pendulum
- 3 position lock switch with manual mode
- Integrated magnetic bracket
- Touch pad control panel
- Overmolded housing
- 1m drop tested
- Dust and Water Protection – IP54 Rating
Specifications
- Accuracy: ±4mm at 10m
- Range: 20m
- Light source: Laser diodes
- Laser wavelength: 630-680nm visible
- Laser power: ≤3.2mW Class II
- Rating: IP54
- Beam colour: Green
- Operating temperature: -10°C – 40°C
- Storage temperate: -20°C – 60°C
- Weight: 1kg
- 4 x AA
- 1 x Carry Case
- IHG SKU
- 6595110
- National SKU
- 790219
- Product Code
- DW03601-XJ
- Barcode
- 5054905033354
- Brand
- DeWALT
- Weight (kg)
- 1
- Height (mm)
- 170
- Width (mm)
- 100mm
- Depth (mm)
- 210
